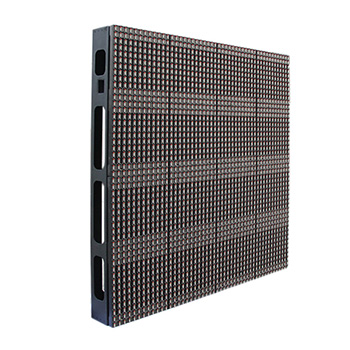

UMESH
Building Digital Signage
UMESH는 통풍구조의 초경량 디스플레이 제품으로 Store Sign, Window Sign,
Street Sign, Building scene lighting등 다양한 분야에서 적용되는 획기적인 광고매체 입니다.
Stability
Windproof
Transparent
Energy-saving

Application

[Store sign]

[Window sign]

[Street sign]

[Building scene lighting]
Specifications
| SPECIFICATIONS | Umesh10 | Umesh16 | Umesh20 | Umesh25 | Umesh50 |
| Pixel Pitch(mm) | 10 | 16.67 | 20 | 25 | 50 |
| Brightness Adjustable(nits) | 7000 | 7000 | 7000 | 6500 | 6000 |
| LED Encapsulation | DIP346 | DIP346 | DIP346 | DIP346 | DIP346 |
| Optimum Viewing Angle | H:110° V:50° | H:110° V:50° | H:110° V:50° | H:110° V:50° | H:110° V:50° |
| Panel Size(mm) | 1200 x 1200 | 1200 x 1200 | 1200 x 1200 | 1200 x 1200 | 1600 x 800 |
| Panel Resolution(pixels) | 120 x 120 | 72 x 72 | 60 x 60 | 48 x 48 | 32 x 36 |
| Panel Weight(kg) | 42 | 41.5 | 41 | 41 | 52 |
| Power Consumption (Max/Ave((W/sqm) | 411 / 136 | 411 / 136 | 411 / 136 | 384 / 127 | 281 / 94 |
| Refresh Rate(Hz) | ≥1000 | ≥1000 | ≥1000 | ≥1000 | ≥4000 |
| Gray Level(bit) | ≥14 | ≥14 | ≥14 | ≥14 | ≥16 |
| IP Rating | 65 / 54 | 65 / 54 | 65 / 43 | 65 / 43 | 65 / 54 |
| OperatingTemperature/Humidity | -20~+50/10~90% | ||||
UMESH Detail
Key Features
Whole aluminum frame design, ultra-thin & ultra-light
전체 알루미늄 프레임 디자인이며 초박형 및 초경량이다.
Hollow out design, high light transmittance
높은 투과율로 창문등에서 설치가 용이 하다.
Standard modules for all series : 200×400
모든 시리즈를 위한 표준 모듈 : (200 × 400mm) 크기이다.
Cabinet with no fan design, low noise, low power consumption
무팬 디자인으로 낮은 잡음과 저 전력 구조이다.
High gray grade, high refresh rate, high brightness
높은 그레이단계, 높은 재생율, 높은 광도로 표현된다.
Air plug connection, convenient and efficient for cascade connection
전원 및 데이타의 공급은 완벽한 방수구조의 콘넥타로 연결한다.
IP65 (front) high protection level
IP65 (전면), 높은 수준의 방수 구조이다.
Cabinet and module front/rear maintenance can be realized
캐비닛 및 모듈은 전면 / 후면 유지 보수가 가능하다.

[ 정면 ]

[ 뒷면 ]

[ 측면 ]
Mesh Series

DIP
P31.25mm, P50mm, P65mm
SMD
P30mm, P18mm, P15.24mm
