PRODUCT UTILE

UTILE

Rental & Stage

UTILE는 보급형의 RENTAL LED SCREEN 으로서
각종 이벤트, 공연, 예식장, 교회의 Back Stage Screen에 적용 합니다.

Ultra thin, light and fast installation.

Application

[Event stage]

[Show stage]

[Wedding Hall Screen]

[Church Screen]

Specifications

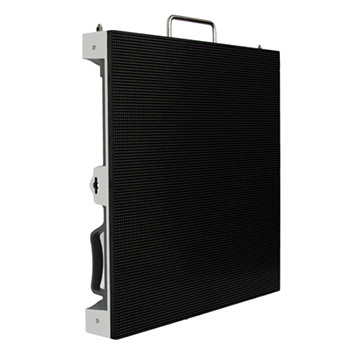

INDOOR

SPECIFICATIONS	Utile2 plus	Utile3 plus	Utile4	Utile6
Pixel Pitch(mm)	2.6	3.906	4.807	6.25
Brightness (cd/m2)	1200	1200	1200	800
LED Encapsulation	SMD2121	SMD2121	SMD2121	SMD3528
Optimum Viewing Angle	H:140° V:120°	H:140° V:120°	H:140° V:120°	H:140° V:120°
Panel Size(mm)	500 x 500	500 x 500	500 x 500	500 x 500
Pixel Density(dot/m²)	147,475	65,544	43,276	25,600
Panel Weight(kg)	8.5
Material	Die-casting Aluminum
Refresh Rate(Hz)	≥1920
Input Valtage	100~240v
IP Rating	30
OperatingTemperature/Humidity(°C/RH)	-10°C~+45°C, 10~80%

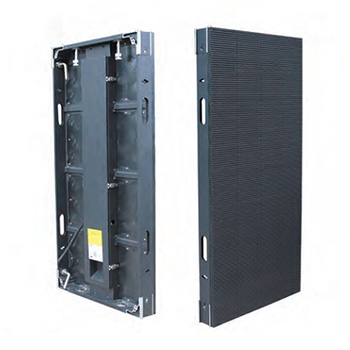

OUTDOOR

SPECIFICATIONS	Utile6.9		Utile8.9
Pixel Pitch(mm)	6.944		8.928
Brightness Adjustable(nits)	5500		5500
LED Encapsulation	SMD3535		SMD3535
Optimum Viewing Angle	H:140° V:120		H:140° V:120
Panel Size(mm)	500 x 500	500 x 1000	500 x 500	500 x 1000
Panel Resolution(pixels)	72 x 72	72 x 144	56 x 56	56 x 112
Panel Weight(kg)	15	8.5	15	8.5
Power Consumption(Max/Ave)(W/sqm)	820 / 272		820 / 272
Refresh Rate(Hz)	≥1920		≥1920
Contrast Ratio	4000 : 1		3000 : 1
IP Rating	65 / 43		65 / 43
OperatingTemperature/Humidity(°C/RH)	-20°C~+50°C, 10~90%		-20°C~+50°C, 10~90%
